About the product

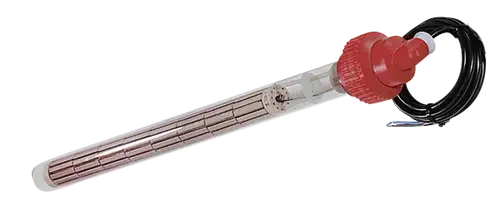

The immersion heater consists of a quartz or acid-resistant steel cover, a ceramic heating insert and a splash-proof head. The shield is permanently marked with a mark of the minimum depth of immersion in the bath. It determines the length of the heating part of the heater. The head is made of polypropylene resistant to the effects of baths and their vapors, which, together with rubber seals, provides a splash-proof cover for the heater's electrical terminals.
The load-bearing element of the heater is the head, which should be supported with its lower surface on a bracket placed on the bath (the bracket is not included in the scope of delivery). The bracket should keep the heater stationary during the movement of the bath caused by the placement of the charge in it, and distance of the heater from the bath wall to ensure that it is freely washed by the bath.
GGT immersion heaters with quartz sheath
Electroplating heaters designed for all types of acid baths, especially:
- high-gloss nickel plating
- coloring (excluding hydrofluoric acid)
- chromium
- with noble metals
- from sodium solutions
- rinse water contaminated with acids (excluding hydrofluoric acid)
- alkaline baths
Power | Voltage | Total length of the quartz sheath | Length of the non-heated part |
|---|---|---|---|
900 W | 230 V | 383 mm | 83 mm |
1800 W | 230 V | 808 mm | 250 mm |
2500 W | 230 V | 938 mm | 250 mm |
3500 W | 230 V | 1308 mm | 250 mm |
GGS immersion heaters with acid-resistant steel sheath
Galvanic heaters designed for all types of alkaline baths, especially:
- degreasers
- cadmium
- copper
- tin
- zinc
- alkaline contaminated rinsing water
Power | Voltage | Total length of the quartz sheath | Length of the non-heated part |
|---|---|---|---|
600 W | 230 V | 383 mm | 83 mm |
900 W | 230 V | 800 mm | 250 mm |
1300 W | 230 V | 930 mm | 250 mm |
1600 W | 230 V | 1300 mm | 250 mm |
How to place an order for heaters and heating elements
We would like to point out that each heater project should be treated individually, so before you decide to place an order we recommend to consult with our sales engineers by sending a quotation request via e-mail. In order to provide you a price quote as quickly as possible, we will need a set of the following information:
- a photo or technical drawing of heating element
- heater type
- application of the heater (the device in which it will be used or the medium in which it will operate)
- expected operating temperature
- power [W] or resistance [Ω]
- voltage
- dimensions
- mounting method (head/threaded sleeve, flange, etc.)
- type of electrical connector or power cable
- for cables, please specify minimum length
- quatity
Please do not hesitate to contact us in advance if you have any doubts or questions.
